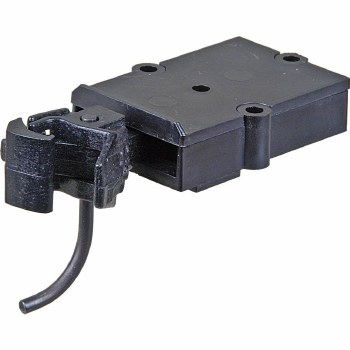

G COUPLER BODY MOUNT 1 PR

Centerset Shank Couplers with Body Mount Gearboxes - Black
G-Scale

Simple Drop in Design
Trouble Free Operation
Compatible with All Kadee® G-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...


Package Includes:

(2) Each #830 Original Style Plastic Couplers - Straight Centerset Shank
(2) Each #910 Body Mount Gearbox & lids
(3) Each #878 Centering Springs
(1) Each #860 Knuckle Springs
(4) Each #4 x 3/4" Screws
(4) Each #4 x 1" Screws

#830 Plastic Coupler Features:
Material - Plastic
Shank Length - (13/16") (Back of the Coupler Head to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #878 G Scale Centering Springs
Knuckle Spring - #860 G Scale Knuckle Springs
Head - Original Style Head
Works In Place of - #906, #906R, & #930 G Scale Straight Centerset Couplers
Works With - #910, #910R Draft Gearboxes

#910 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 1 21/32"L x 15/32"W x 13/32"H
Works With - #830, #906, #906R, & #930 Couplers

Mounting Specifications:
Mounting Height - 1 19/64"
Centerline - 1 1/8"
Trip Pin Height - 1/8"
Mounting Holes - #4 Screws are the most commonly used. (Screw length will vary)

Recommended Tools:

#880 G Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
